VacuumGlass® – Fire Resistant & High-Performance Insulating Glass
VacuumGlass® is a revolutionary insulating glass solution designed to meet modern energy efficiency standards without compromising architectural aesthetics or structural integrity.

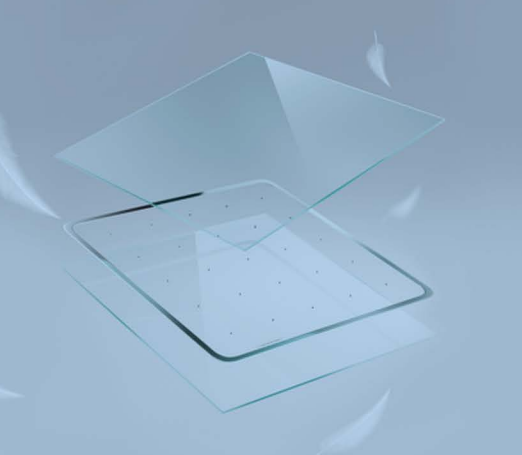

The system consists of two 4 mm tempered glass panes separated by an ultra-thin vacuum layer of just 0.3 mm, resulting in a total thickness of only 8.3 mm
VACUUMGLASS ENG
Thanks to its advanced vacuum technology and patented manufacturing process, VacuumGlass® achieves an exceptional thermal transmittance value of 0.4 W/m²K, outperforming even conventional triple glazing systems.
Fire Safety & Structural Performance
VacuumGlass® uses tempered safety glass and advanced perimeter sealing technology, ensuring durability, safety, and long-term performance even under extreme temperature differences of up to 70°C
VACUUMGLASS ENG
In case of breakage, the glass shatters into very small, non-dangerous fragments, enhancing occupant safety
VACUUMGLASS ENG
Its vacuum-sealed titanium alloy perimeter gasket provides superior resistance to condensation and structural stress
VACUUMGLASS ENG
Key Technical Advantages
Ultra-slim design: only 8.3 mm total thickness
VACUUMGLASS ENG
Thermal insulation: Ug = 0.4 W/m²K
VACUUMGLASS ENG
Superior acoustic insulation: up to 36 dB
VACUUMGLASS ENG
Lightweight: only 20 kg/m²
VACUUMGLASS ENG
Condensation-free performance
Service life exceeding 25 years
VACUUMGLASS ENG
Large continuous panels up to 4.2 m × 2.4 m
VACUUMGLASS ENG
Ideal Applications
Fire-resistant glazing systems
Curtain wall façades
Glass roofs and skylights
Thermal insulating glass floors
Heritage building renovation
Large glazed openings in residential and commercial projects
